Description
- Nom de marque: SALMOPH
- SALMOPH Modèle: ZINO MINI PRO
- GPS: Oui
- Caractéristiques de Caméra: 4K HD Video Recording
- Taille de Capteur: Aucun
- Temps d’action: 40min
- Aircraf Fréquence de Fonctionnement: 5.8GHz
- Origine: CN (Origine)
- Intégration de Caméra: Caméra incluse
- FPV Operration: Oui
- Fps: 30 * fps,60 * fps
- Stabilisation de caméra: Cardan Stabilisateur D’image
- Drone de Capacité de Batterie: 3000Mah
- Gyro: Yes
- Diamètre du rotor principal: 10CM
- Support de caméra Type: Cardan à 3 axes
- Temps De Vol maximum: 40Minutes
- Connectivité: Contrôleur APP,Télécommande,Connexion Wi-Fi
- Photographie Aérienne: Oui
- Ratio de Zoom Optique: 50x
- Portée De Transmission: 10km
- Fréquence: 5.8GHZ
- Drone Poids: 249G
Hubsan ZINO Mini PRO 1/1.3 Inch Drone with 4K Camera 3-Axis Gimbal Quadcopter 40mins 10KM Obstacle Avoidance Professional Dron
Note:
※1.If the drone meets any problem, please upload the flight log first.Do not uninstall the APP at will, because the APP retains all flight records.
※2.Register 1 account for 1 aircraft, do not register multiple accounts.
※3.Because ZINO MINI SE battery is smart battery, the battery needs to be recharged every one or two months.
Specifications:
AIRCRAFT
Color:Grey
Size：
Expand:202.54*161.2* 61.6mm
Folding:137* 88*61.6mm
Folding(including blades):137*94* 61.6mm
Diagonal wheelbase：220mm
Maximum current:16A
Take off weight:249grams(China,Europe,America,Japan),199grams(Japan)
Hover accuracy
Vertical:
0.1 m (When the visual positioning is working normally)
0.5 m (When GPS is working normally)
Horizonta:
0.3 m (When the visual positioning is working normally)
1.5 m (When GPS is working normally)
Maximum ascending velocity: 3m/s(N) 4m/s(S) 2m/s(F)
Maximum descending velocity: 3m/s(N) 3.5m/s(S) 1.5 m/s (F)
Maximum horizontal flight speed:
10m/s (N, No wind at sea level)
16m/s (S, No wind at sea level)
Maximum take-off altitude:4000 meters
Maximum anti-wind capability: Grade 5 wind (8.5~ 10.5m/s)
Maximum tilt angle:40° (S) 25° (N) 15° (F)
Satellite navigation system:GPS/GLONASS
Duration of flight:40 minutes (Measured under normal temperature and no wind conditions, at a flight speed of 25km/h)
POWER SYSTEM
Propeller
Model:Folding propeller diameter 125.6mm
Colour:Black
ESC:
Digital ESC: Brushless 20Ax4
Category:Li-ion battery
Capacity:2400mAh
Nominal voltage:3.6×2=7.2V
Charging voltage limitation:8.4V
Discharge limitation:8C
Charging time:90 minutes
Battery weight:101.84g
Working temperature:0°C~50°C
Charging environment temperature:0°C~40°C
Smart battery balance:Support
Voltameter management:Support
Automatic discharge protection:Support
CAMERA
CMOS Ilmage sensor：
1/1.3 inch CMOS sensor
2.4um mixed large pixel
Lens specifications：
FOV 84°
Aperture f/1.85
EFL:6.8mm
Focus point 0.5m to infinity
Distortion <1.5%
Maximum video encoding capacity:4K@30fps
Video resolution
4K:3840X 2160@30fps
2.7K:2720 X 1530@30/60fps
FHD:1920X 1080@30/60fps
Shutter speed:3-1/8000s
Video bitrate:100Mbps -200Mbps
Photo format:JPEG
Video format:MP4 (H.265/HEVC)
Firmware upgrade:App online upgrade
Support memory card type:Built-in eMMC 64G/128G
WIRELESS TRANSMISSION
SYSTEM
Wireless transmission solution:SyncLeas 3
Effective range
FCC:10km
CE:6km; SRRC: 6km
Average bitrate:20Mbps
Transmission delay:Within 200ms
Antenna：Built-in dual antenna
Default remote：HT018Y
GIMBAL
Gimbal model:HY817D
Degree of freedom:Triaxial
Maximum pitch Speed:120°/s
Rotation range:
-120°~+45°
Roll:35°
Yaw:35°
FLIGHT CONTROLLER
Flight controller version:Third-generation flight controller
Basic flight mode:Sports mode/Normal mode/Movie mode
Altitude hold:Tof, barometer
Fixed-point function:Vision optical flow, GPS
Unlock/lock:Outer- eight unlock/lock
One-click take-off/landing:APP support, remote control does not support
Out of control protection:Support
Low battery return:Support
Home recognition(Search the drone apron):Support
Vision tracking:Third-generation tracking technology (ATVT3.0)
Waypoint flight:Support
Flying around:Support
Ray flight:Support
Time-lapse photography:TBD
Motor stall protection:Support
Firmware upgrade:App online upgrade
PERCEPTION
Forward:
Binocular visual perception, precise measurement
distance <12 metersFluctuation <0.5m,
perception distance> 15m
Backward:
Binocular visual perception, precise measurement
distance <12 metersFluctuation <0.5m,
perception distance> 15m
Downward:
Monocular optical flow, Tof ranging
Effective ranging range 0.3m-5m,
fluctuation <0.1m
REMOTE CONTROLLER Colour:Grey
Display:Highlight LED display
Working temperature:-10°-60°
Effective range
FCC:10km
CE:6km;SRRC:6km
Built-in battery:3350mAh
Buzzer:Support
Supportable mobile system:Android, ios
Continuous working time:2.5h (Normal flight time)
Supportable interface type:Lighting, MicroUSB, USB-USB-typeC
APP
APP:X-Hubsan2
Mobile device requirements:
I0S 10.0 or higher
Android 6.0 or higher
ZINO MINI PRO
The world’s first drone with obstable avoidance under 250g
Outstanding advantages
With a 1/1.3CMOS,support 1080P 30fps video,weight 249g,maxflight time 40minutes,10km range,3 direction obstacle avoidance
Imaging Quality
1/1.3 inch CMOS sensor
support 4K/30fps
up to 200Mbps video bitrate
f/1.85 super large aperture and 2.4μm super large pixel
built-in memory (64G/128G)
Enjoy sharing video online easily
Night Mode
A deep algorithm of image denoising optimizes your low-light shots
Imaging Quality
ZINO MIN PRO
With a 1/1.3 inch CMOS sensor support smooth 4K/30fps video
H.265/HEVC 200Mbps,built-in eMMC(64G/128G)
enable you to share your video to media easily
HDR
Capture higher dynamic range and colors,optimizing your low-light shots.
Obstacle avoidance
Three direction obstacle avoidance
The world’s first drone with vision obstacle avoidance under 250g with advanced 3D space perception algorithms enable the camera to capture more than 600K space feature points with depth extraction and calculation reaching 15 meters of cognitive distance.
Optical-flow night light and Al tracking Mode
Optical-flow night light ensures your hovering performance in low-light circumstances.
ZINO MINI PRO applying our newest Al tracking algorithms(ATVT3.0)with a huge improvement in tracking latency and tracking accuracy can locate the figure and animals or moving vehicles easily and automatically.
Intelligent Batteries
Accuracy and safety
Equipped with intelligent battery management unit to caculate power accurately
Built-in safety protection circuit combined with precise power protection strategy and on-off control algorithm to make drone flight high safety
Intelligent Battery Manager
It can accommodate four batteries in sequence, and can also be used as a mobile power source to charge devices such as remote controls or cell phones.
Flight Time
Max Flight Time 40 mins (measured while flying at 6 m/s in windless conditions)
Max Flight Time 37mins hovering time in windless environment
Video Transmission
ZINO MINI PRO
10KM 1080P/30fps 20Mbps
ZINO MINI PRO
Hubsan Syncleas.3.0
1080P/30fps 20Mbps 10KM
ZINO MINI PRO
6X hybrid zoom

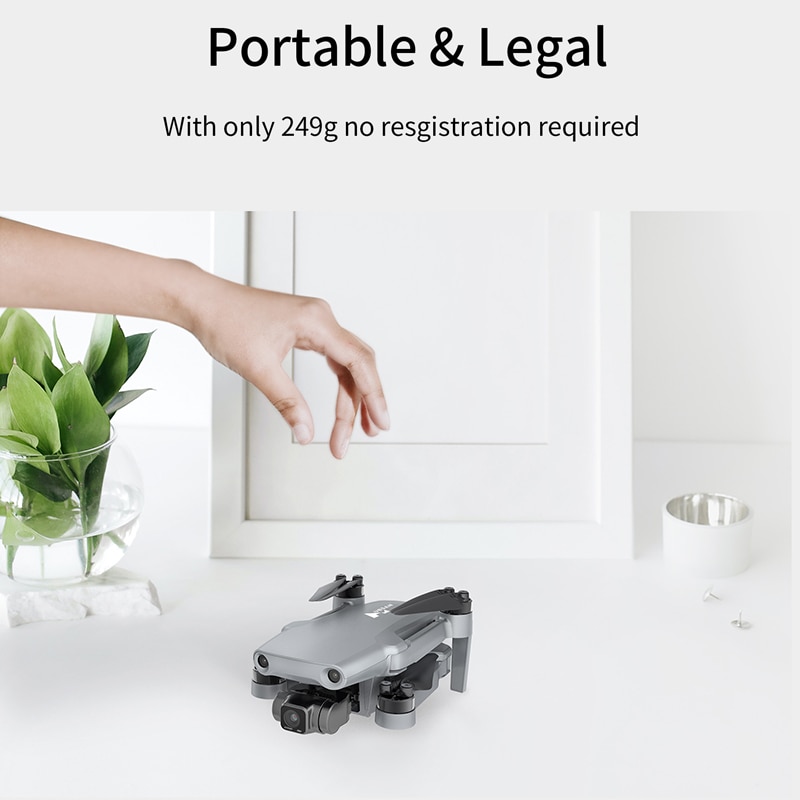

Portable & Legal
With only 249g no resgistration requeired
Build-in eMMC(64G/128G)
ZINO MINI PRO
Build-in eMMC(64G/128G)enable you to share your video to media easily
